HV Interface Designs

Most HV connections are bespoke and must be designed around the grid interface requirements and the mechanical configuration of the termination structure.

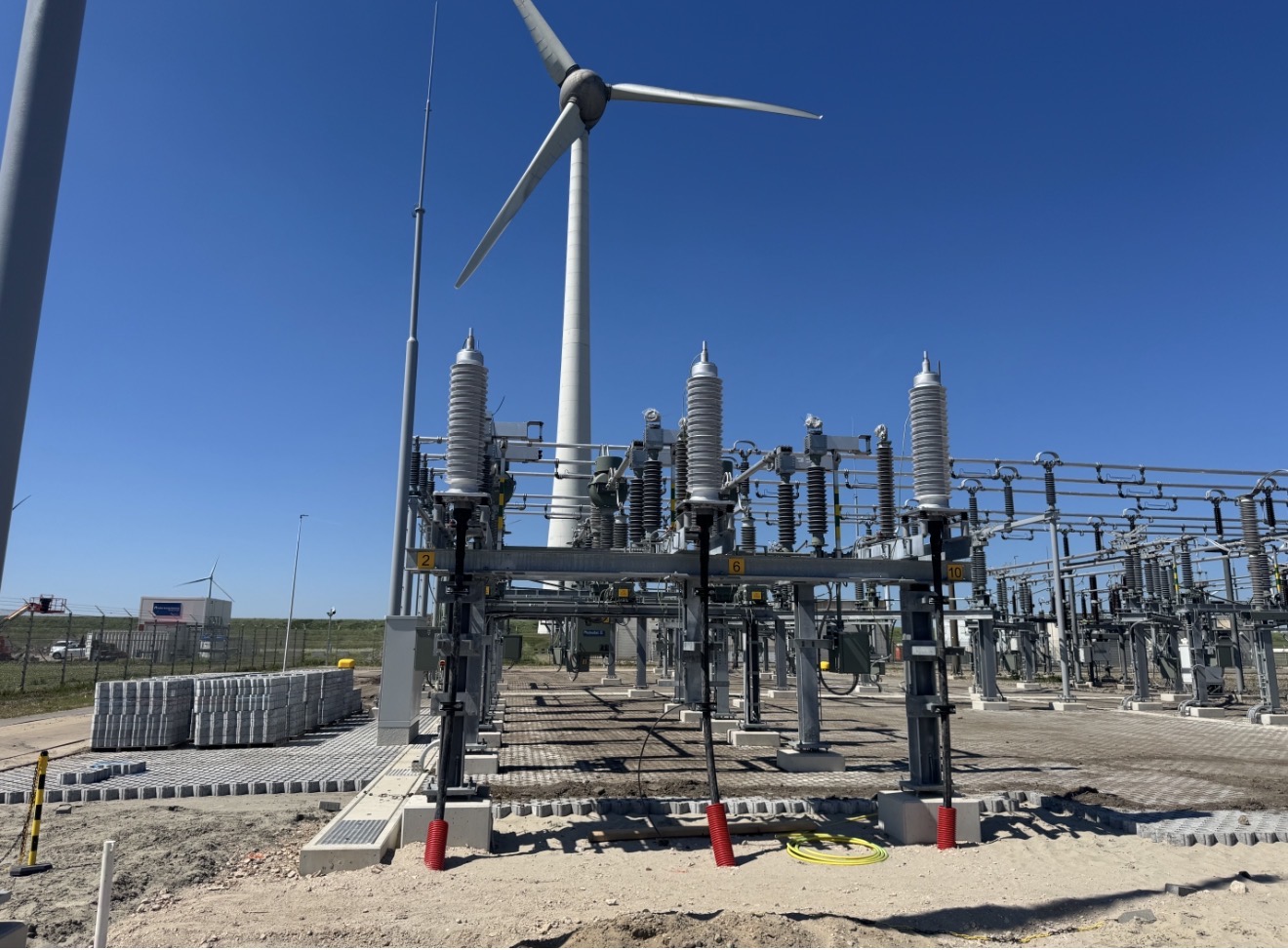

HV interface

11 kV to 33 kV MV power cables and accessories with Umax 36 kV

Public or private land ownership and transformer termination type must be verified. Where applicable, distribution network operator specifications and relevant standards such as BS 7870 section 4.10 must also be confirmed.

MV power cable technology is well established, however physical installation parameters must still be agreed with cable and accessory suppliers. Cable routing, trench design, thermal environment and termination interfaces must be verified during the design phase.

There is currently a general supply capacity constraint across the MV cable market and manufacturing lead times must be planned well in advance to secure a viable project solution.

Warranty risk must also be carefully managed. Supply chain due diligence, factory acceptance testing and confirmation of product indemnity arrangements should form part of the procurement process. This applies to both cables and accessories including joints, terminations and sealing ends.

Medium Voltage Interface

The Medium Voltage collection network normally operates between 11 kV and 33 kV and forms the electrical interface between inverter transformer stations and the grid export system.

The MV interface typically includes:

The interface point between Medium Voltage infrastructure and the export system must be clearly defined in the project design documentation to ensure compatibility of cable terminations, insulation coordination and protection settings.

MV cable systems normally use XLPE insulated screened power cables with aluminium or copper conductors depending on current carrying requirements and installation conditions.

Cable sizing must consider:

High Voltage Cable Systems

High Voltage export cables are used where power must be transferred from the plant collection network to the transmission network.

For avoidance of doubt, High Voltage typically refers to:

High Voltage cable systems are globally regulated through well established engineering standards and grid codes. Despite this, every HV connection is effectively bespoke because cable systems, sealing ends and termination structures must match the specific grid interface design for each project.

Typical HV cable systems include:

Cable installation design must consider:

Cable identification, segregation and routing must be clearly documented to ensure safe installation and long term maintainability of the electrical system.

Engineering Coordination and Project Delivery

High Voltage cable systems sit at the intersection of electrical engineering, civil design, procurement strategy and grid regulation. Successful delivery therefore requires coordinated engineering across multiple disciplines including cable design, installation engineering, protection coordination and mechanical interface design.

Unlike many electrical components, High Voltage cable systems cannot be treated as catalogue equipment. Each project requires integration between cable manufacturers, accessory suppliers, engineering consultants, installers and grid operators to ensure compatibility between cable systems, termination structures and protection systems.

Early engineering coordination is therefore essential. Projects that engage cable manufacturers and specialist engineers during the early design stages are significantly more likely to achieve reliable installation conditions, realistic procurement schedules and successful commissioning.

Where this coordination is absent, cable systems frequently become the critical path constraint during construction and commissioning of energy infrastructure projects.

Cable Joints and Terminations

Medium Voltage and High Voltage cable systems require specialist jointing and termination procedures to ensure long term insulation integrity.

Termination systems must provide:

Cable joints must maintain the electrical and thermal characteristics of the cable system while providing mechanical protection and moisture sealing.

Jointing and termination works are normally carried out by manufacturer certified technicians in accordance with the cable manufacturer installation procedures.

Cable joints and terminations represent the highest statistical risk locations for insulation failure in power cable systems and therefore require strict quality control during installation.

Installation Requirements

Cable installation specifications normally include requirements covering:

These requirements ensure that cable systems maintain their designed electrical and thermal performance throughout the installation process.

Supply Chain and Procurement Risk

High Voltage cable systems operate within an even more constrained supply environment than Medium Voltage infrastructure.

Specialist HV cable and accessory manufacturers operate at global scale and typically require a comprehensive engineering scope and commercial commitment before engaging in project supply discussions. This reflects the high technical risk and national infrastructure importance associated with transmission level equipment.

Every High Voltage interface must therefore be treated as a bespoke engineering package requiring early coordination between project developers, transmission system operators and specialist manufacturers.

A significant portion of project cost and risk in High Voltage infrastructure is associated with:

Maintaining established supply relationships with HV manufacturers and engineering contractors is often essential because negotiations with Distribution Network Operators and Transmission System Operators can become technically and commercially complex.

Transmission operators across Europe are currently investing heavily in High Voltage infrastructure expansion. Organisations such as National Grid, TenneT and Terna are undertaking multi billion euro procurement programmes covering:

These programmes compete for the same specialist cable manufacturing capacity and installation expertise required by large renewable generation projects.

Early procurement planning and strong engineering coordination are therefore essential to secure viable delivery schedules for HV cable systems and associated accessories.
